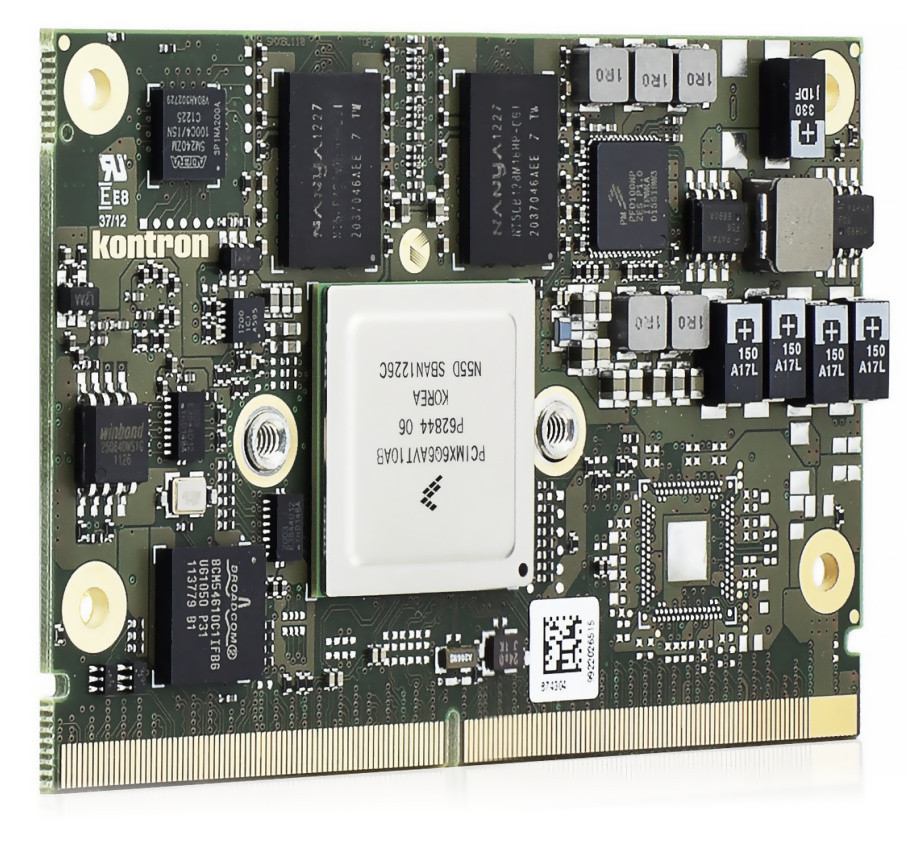

Komputer Kontron Smarc-Samx6I 0.8 512/4Gb
- Manufacturer: Kontron
- Full specification
| Family | SMARC-sAMX6i |
| Compliance | SMARC - Smart Mobile Architecture by SGET - small size |
| Dimensions (H x W x D) | 82 x 50 mm |
| CPU | Freescale i.MX6 Solo, 800MHz single core |
| Graphics Controller | Dual Display HD 1080p Decode/Encode 2D/3D acceleration |
| Main Memory | 512MB DRAM memory down |
| Panel signal | Parallel LCD 18/24 bit LVDS Single Channel 18/24bit HDMI |
| Ethernet | 10/100/1000 MBit Ethernet |
| Ethernet Controller | integrated |
| Flash onboard | 4GB eMMC |
| Interface | 2x GPIO, SDIO, 5x I2C, 2x I2S, 2x SPI, SPDIF, WDT, 2x CAN Camera Interface (PCAM, CSI) |
| PCI Express / PCI support | 3x PCIe x1 |
| USB | 3x USB 2.0 (jeden OTG) |
| Serial | 2x RX/TX (Ser1/3) 2x UART (Ser0/2) |
| Humidity | 93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78) |
| Power Management | Battery and System Management |
| Power Supply | 3V - 5.25V Operates directly from single level Lithium Ion cells or fixed 3.3V or 5V power supplies |
| Power Consumption | Typ. 5W |
| Operating System | Linux, Android, WEC7 |
| Temperature | -40 °C to +85 °C operating, -40 °C to +85 °C non-operating |
Status: Out of stock
560.98 zł / szt
690.01 zł gross
Ask a question
Komputer Kontron Smarc-Samx6I 0.8 512/4Gb
SKU: 51003-0540-08-1
Ask For Individual Price
Komputer Kontron Smarc-Samx6I 0.8 512/4Gb
SKU: 51003-0540-08-1
| Family | SMARC-sAMX6i |
| Compliance | SMARC - Smart Mobile Architecture by SGET - small size |
| Dimensions (H x W x D) | 82 x 50 mm |
| CPU | Freescale i.MX6 Solo, 800MHz single core |
| Graphics Controller | Dual Display HD 1080p Decode/Encode 2D/3D acceleration |
| Main Memory | 512MB DRAM memory down |
| Panel signal | Parallel LCD 18/24 bit LVDS Single Channel 18/24bit HDMI |
| Ethernet | 10/100/1000 MBit Ethernet |
| Ethernet Controller | integrated |
| Flash onboard | 4GB eMMC |
| Interface | 2x GPIO, SDIO, 5x I2C, 2x I2S, 2x SPI, SPDIF, WDT, 2x CAN Camera Interface (PCAM, CSI) |
| PCI Express / PCI support | 3x PCIe x1 |
| USB | 3x USB 2.0 (jeden OTG) |
| Serial | 2x RX/TX (Ser1/3) 2x UART (Ser0/2) |
| Humidity | 93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78) |
| Power Management | Battery and System Management |
| Power Supply | 3V - 5.25V Operates directly from single level Lithium Ion cells or fixed 3.3V or 5V power supplies |
| Power Consumption | Typ. 5W |
| Operating System | Linux, Android, WEC7 |
| Temperature | -40 °C to +85 °C operating, -40 °C to +85 °C non-operating |
Technical Specifications
| Brand | Newhaven |
|---|---|
| Manufacturer | Kontron |
