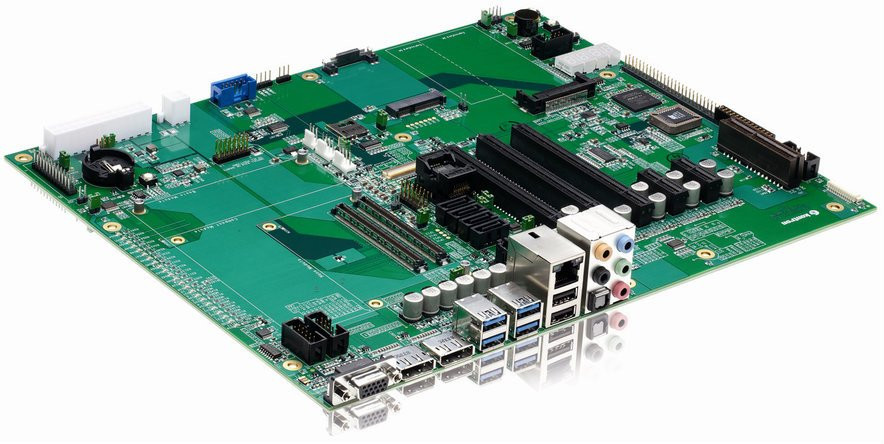

Carrier Board Come Type 6
Compliance
COM Express® Rev. 2.0
Pin-out Type
6
Dimensions (H x W x D)
305 x 244 mm (ATX)
Supported Modules
COM Express® basic or compact
with pin-out Type 6
Graphics
1x LVDS/JILI FFC 40 connector
1x
VGA
2x DP++ (DDI2/DDI3)<br
1x DP/HDMI/DVI/SDVO on ADD2 (DDI1,
Adapter required)
1x PEG x16 for discrete Graphics
</br
Hard Disk
4x SATA
1x micro-SD
USB
4x USB 3.0
2x USB 2.0
PCI Express / PCI support
1x PEG x16 slot
1x
PCIe x16 (electrically x4)
2x PCIe x1
1x miniPCIe (with USB)
1x
Express Card (with USB)
Audio
Realtek ALC888 HD-Audio
S/PDIF
in/out
7.1 audio jacks
Ethernet
1x 10/100/1000 MBit RJ 45 connector
Serial
2x UART on pin-header (from
module)
Ask a question
Carrier Board Come Type 6
SKU: 38114-0000-00-0
Ask For Individual Price
Carrier Board Come Type 6
SKU: 38114-0000-00-0
Compliance
COM Express® Rev. 2.0
Pin-out Type
6
Dimensions (H x W x D)
305 x 244 mm (ATX)
Supported Modules
COM Express® basic or compact
with pin-out Type 6
Graphics
1x LVDS/JILI FFC 40 connector
1x
VGA
2x DP++ (DDI2/DDI3)<br
1x DP/HDMI/DVI/SDVO on ADD2 (DDI1,
Adapter required)
1x PEG x16 for discrete Graphics
</br
Hard Disk
4x SATA
1x micro-SD
USB
4x USB 3.0
2x USB 2.0
PCI Express / PCI support
1x PEG x16 slot
1x
PCIe x16 (electrically x4)
2x PCIe x1
1x miniPCIe (with USB)
1x
Express Card (with USB)
Audio
Realtek ALC888 HD-Audio
S/PDIF
in/out
7.1 audio jacks
Ethernet
1x 10/100/1000 MBit RJ 45 connector
Serial
2x UART on pin-header (from
module)
Technical Specifications
| Brand | Kontron |
|---|
| Shipment | Prepayment | Cash on delivery |
|---|---|---|
| Odbiór osobisty | Free | Free |
| Kurier DPD | 5.00 zł | 10.00 zł |
| Dropshipping | Free | Free |
| Paczkomat | Free | Free |
| Sprzedaż pośrednia | Free | Free |
| Storage | Status | Quantity |
|---|---|---|
| Główny |
0.00000
|
Manufacturer Information
Manufacturer: Kontron
