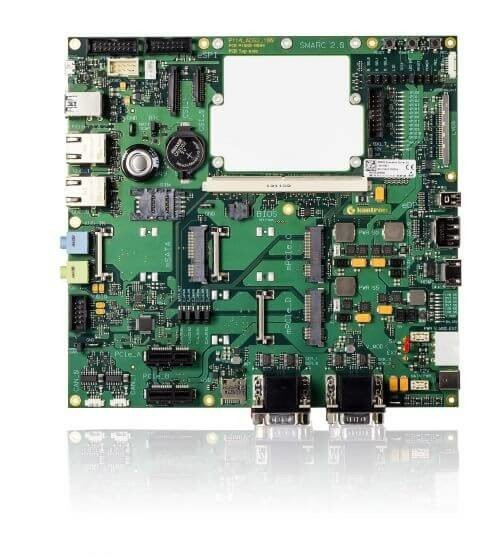

Carrier Board Smarc 2.0
Supply Voltage
Accepts SMARC™ 2.0 Modules 82mm x
50mm and 82mm x 80mm
Dimensions (H x W x D)
210mm x 200mm
Graphics
Dual Channel LVDS
HDMI
DP++
Ethernet
2x GbE ports with integrated magnetics
Audio
I2S Audio Codec (for ARM based
modules)
HDA Audio Codec (for X86 based modules)
Hard Disk
mSATA connector
SD Card connector
USB
1x USB 2.0 dual role
1x USB 2.0
2x USB
3.0
2x USB connected to mPCIe
PCI Express / PCI support
2x miniPCIe with SIM card
support
2x PCIe
Additional
4x UARTS
2x CAN
12x GPIO
2x
MIPI CSI camera interface
Power Supply
12 V single supply
optional 3.0 -
5.25 V for module only
