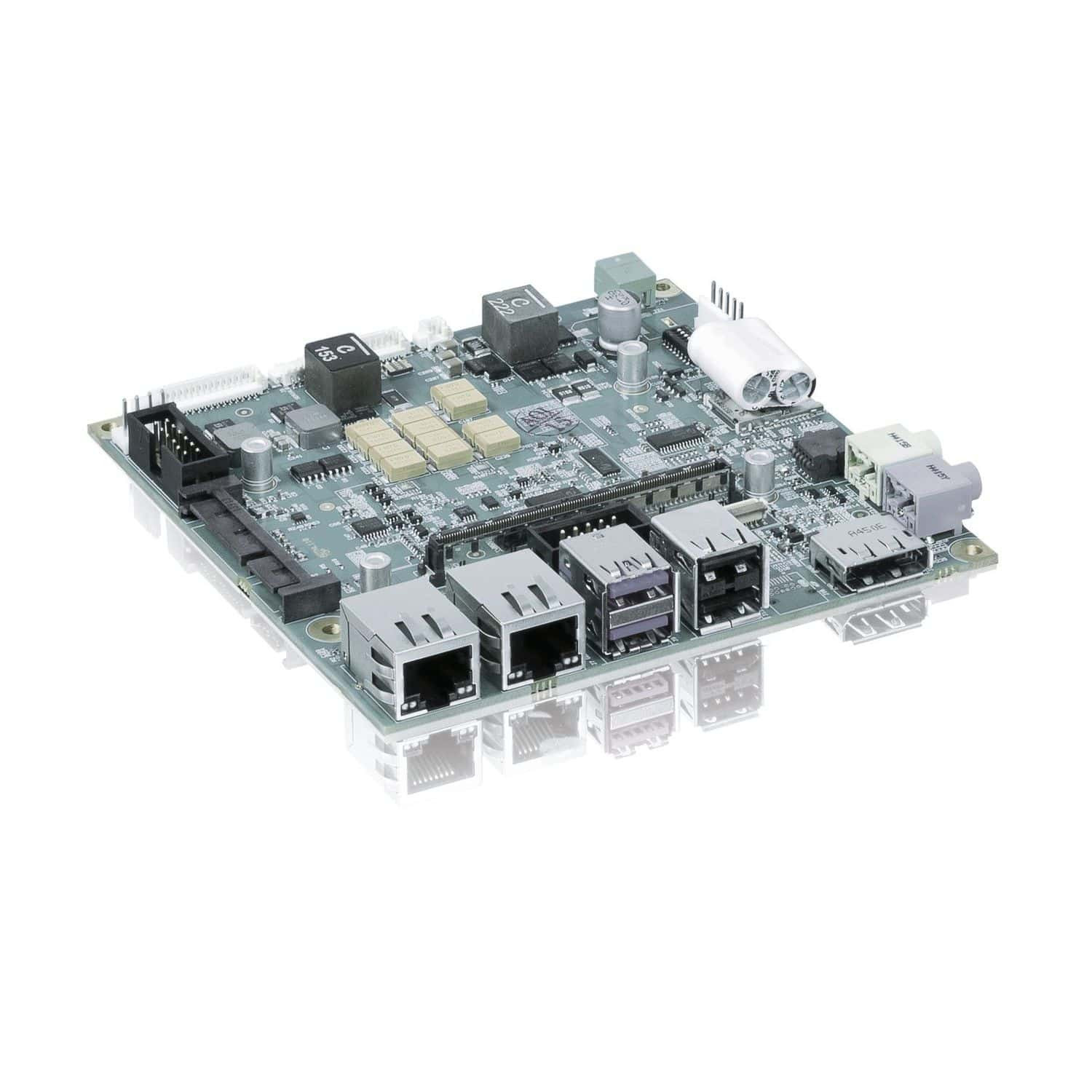

Płytka Ewaluacyjna Carrier Board Come Type 10 E2

Płytka ewaluacyjna umożliwia twórcom aplikacji na szybkie działanie na modularnej platformie COM Express® mini. Szereg złączy na tej płycie pozwala na łatwe wyobrażenie innych, bardziej spersonalizowanych wersji.

Parametry:

CPU
Via COMe mini Type 10 module

Main Memory
System Memory Via COMe mini Type 10 module
Flash Memory One SPI BIOS socket for an SPI flash IC with up to 8 MB flash memory
EEPROM EEPROM with 32 kbit on the carrier (FRUPROM)

PCI Express / PCI support
Three PCIe interfaces:
» PCIe#0 for Mini PCIe 2.0 half-size card slot connected to the microSD/SIM
combo socket, J28
» PCIe#1 for Mini PCIe 2.0 full-size card slot muxed with SATA#1 (mSATA) and
connected to the microSD/SIM combo socket, J26
» PCIe#2 for the onboard Gigabit Ethernet controller

SATA
Two SATA 3 Gb/s interfaces:
» SATA#0 via the 22-pin SATA plug connector, J1
» SATA#1 for the mSATA socket / Mini PCIe full-size card slot, J26

Ethernet
Two Gigabit Ethernet interfaces:
» GbE#0 on RJ45 connector, J4, via COMe mini Type 10 module
» GbE#1 on RJ45 connector, J7, via the onboard GbE controller (Intel® Ethernet Controller I210-IT)

Power Supply
Power input 1: 12V only
Power input 2: 6.5V - 30V wide input range
SMART battery: 7.2V - 8.4V

BIOS
Via COMe mini Type 10 module

Temperature
Operational: -40°C to +85°C
Storage: -40°C to +85°C

Humidity
93% RH at 40 °C, non-condensing (acc. to IEC 60068-2-78)

Form Factor
COM Express® carrier, pinout Type 10, Thin-nITX form factor

Dimensions (H x W x D)
120 mm x 120 mm (nITX)
Max. component height:
Top side: 16.5 mm
Bottom side: 4.0 mm
