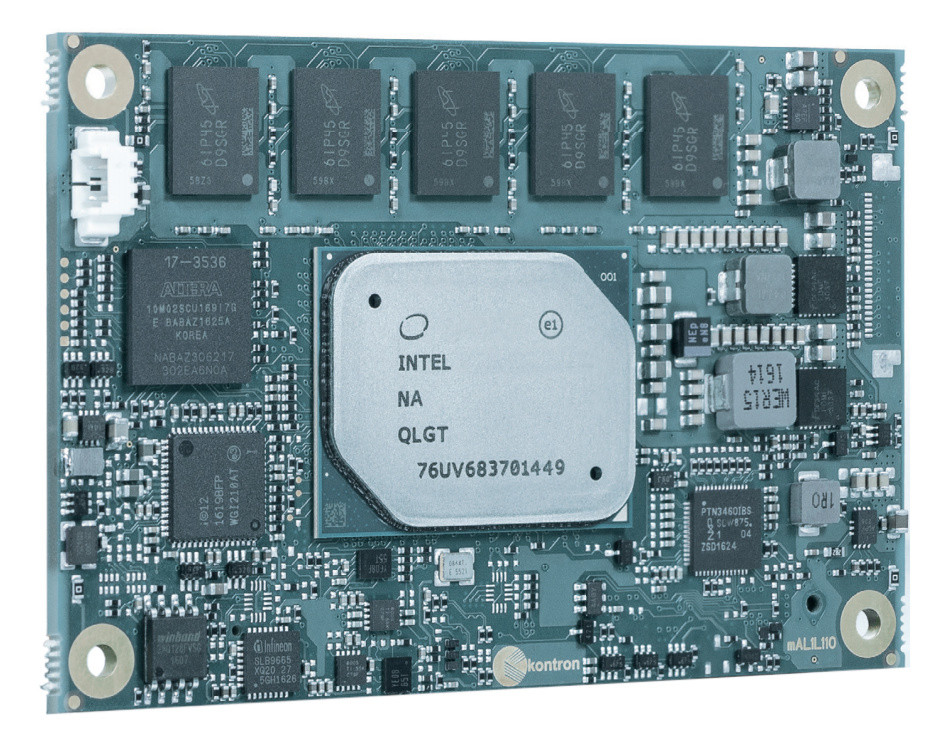

Komputer Modułowy Kontron Come-Mal10 N3350 4G

Family	COMe-mAL10
Compliance	COM Express® mini, Pin-out Type 10
Dimensions (H x W x D)	84 x 55 mm
CPU	Intel® Celeron® N3350, 2x 1.1 / 2.4 GHz
Graphics Controller	Intel HD Gfx Gen9: LVDS / eDP, 1x DP++, up to 4K
Chipset	Integrated SoC
Main Memory	4GB DDR3L memory down
Panel signal	DDI: DP++ LVDS: Single Channel 18 / 24 bit or eDP
Ethernet	10/100/1000 MBit Ethernet
Ethernet Controller	Intel® I211AT
Hard Disk	2x SATA 6 Gb/s
Options	eMMC Flash onboard (up to 64 GByte SLC, up to 128 GByte MLC) Security Chip (Support of Kontron APPROTECT) eDP instead of LVDS General Purpose SPI instead of Boot SPI AES-NI, USB client
Audio	Intel® High Definition Audio
PCI Express / PCI support	4x PCIe x1 Gen 2.0
USB	2x USB 3.0/2.0 6x USB 2.0 (5x USB 2.0 w/ Security Chip) USB #0 is dual role (Client / Host)
Serial	2x serial interface (RX / TX only)
Common Features	SPI, LPC, SMB, Fast I2C, Staged Watchdog, RTC
BIOS	AMI Aptio V
Humidity	93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78)
Power Management	ACPI 5.0
Power Supply	4.75 V – 20 V Wide Range Single Supply Power
Special Features	POSCAP capacitors, Trusted Platform Module TPM 2.0, 4k Resolutions, GPIO / SDIO Switch, General Purpose SPI optional, Industrial Temperature Grade versions
Operating System	Windows 10 Enterprise, Windows 10 IoT, Linux, VxWorks
Temperature	0 °C to +60 °C operating -30 °C to +85 °C non-operating

Numer katalogowy: 34008-0400-11-2

Producent: Newhaven

Status: Brak na stanie

788,62 zł / szt

970,00 zł brutto

Family	COMe-mAL10
Compliance	COM Express® mini, Pin-out Type 10
Dimensions (H x W x D)	84 x 55 mm
CPU	Intel® Celeron® N3350, 2x 1.1 / 2.4 GHz
Graphics Controller	Intel HD Gfx Gen9: LVDS / eDP, 1x DP++, up to 4K
Chipset	Integrated SoC
Main Memory	4GB DDR3L memory down
Panel signal	DDI: DP++ LVDS: Single Channel 18 / 24 bit or eDP
Ethernet	10/100/1000 MBit Ethernet
Ethernet Controller	Intel® I211AT
Hard Disk	2x SATA 6 Gb/s
Options	eMMC Flash onboard (up to 64 GByte SLC, up to 128 GByte MLC) Security Chip (Support of Kontron APPROTECT) eDP instead of LVDS General Purpose SPI instead of Boot SPI AES-NI, USB client
Audio	Intel® High Definition Audio
PCI Express / PCI support	4x PCIe x1 Gen 2.0
USB	2x USB 3.0/2.0 6x USB 2.0 (5x USB 2.0 w/ Security Chip) USB #0 is dual role (Client / Host)
Serial	2x serial interface (RX / TX only)
Common Features	SPI, LPC, SMB, Fast I2C, Staged Watchdog, RTC
BIOS	AMI Aptio V
Humidity	93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78)
Power Management	ACPI 5.0
Power Supply	4.75 V – 20 V Wide Range Single Supply Power
Special Features	POSCAP capacitors, Trusted Platform Module TPM 2.0, 4k Resolutions, GPIO / SDIO Switch, General Purpose SPI optional, Industrial Temperature Grade versions
Operating System	Windows 10 Enterprise, Windows 10 IoT, Linux, VxWorks
Temperature	0 °C to +60 °C operating -30 °C to +85 °C non-operating

Producent	Newhaven
Manufacturer	Kontron
