komputery przemysłowe

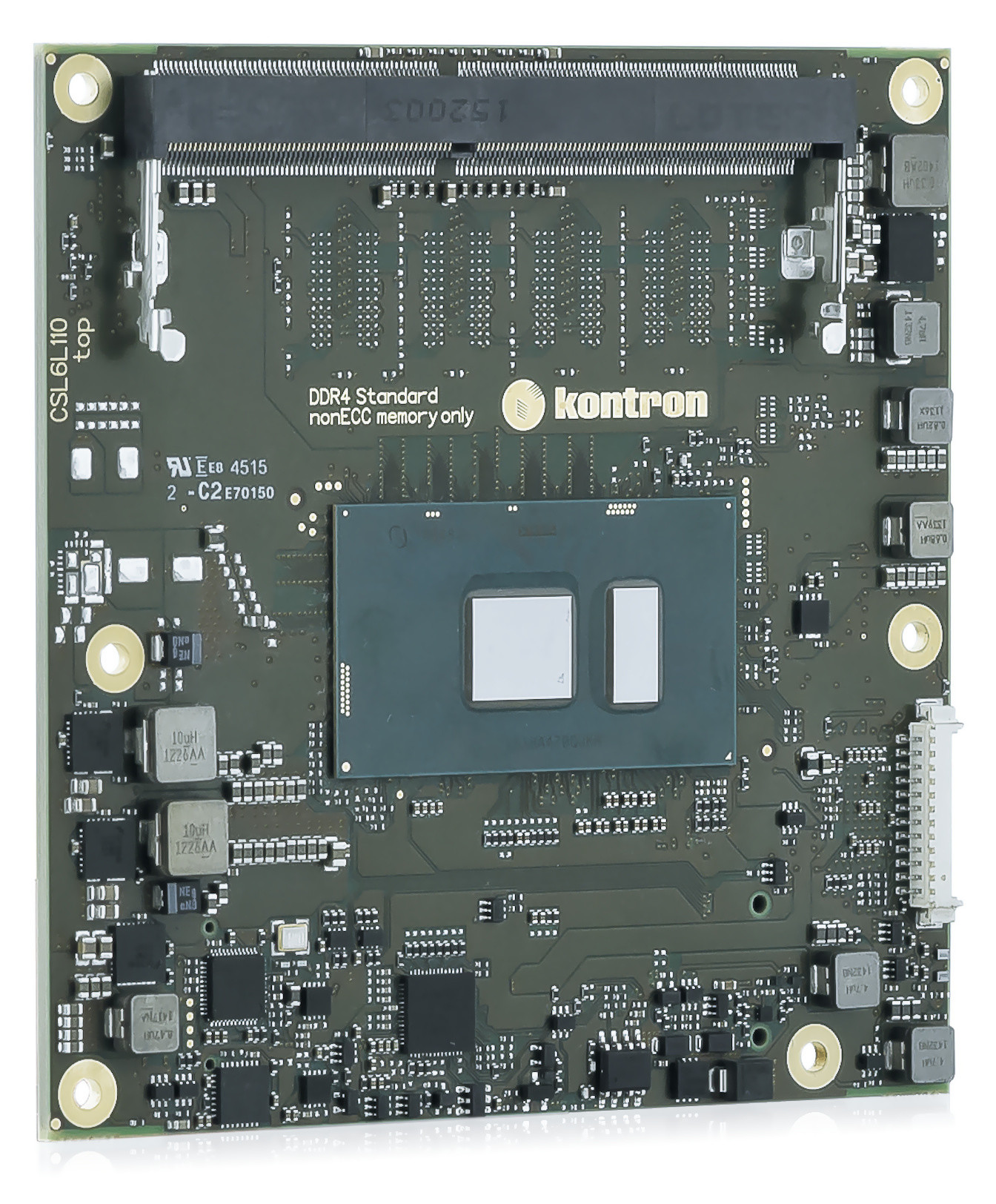

Komputer Modułowy Kontron Come-Csl6 I5-6300U

Family	COMe-cSL6
Compliance	COM Express® compact, Pin-out Type 6
Dimensions (H x W x D)	95 x 95 mm
CPU	Intel® Core™i5-6300U, 2x 2.4GHz
Graphics Controller	Intel® HD Graphics 520
Chipset	Integrated SoC
Main Memory	DDR4 SO DIMM Socket
Panel signal	DDI1: DP++ DDI2: DP++ DDI3: - VGA: - LVDS: Dual Channel 18/24 bit
Ethernet	10/100/1000 MBit Ethernet
Ethernet Controller	Intel® I219LM
Flash Onboard	Na życzenie do 64 GByte SLC eMMC 5.0
Hard Disk	2x SATA 6Gb/s
Options	on request: 1x PCIe x1 additional w/o onboard LAN, eDP, max 64 GByte eMMC, instead of LVDS, vPRO (AMT/TXT/AES Support), industrial grade -40 °C to +85 °C
Audio	Intel® High Definition Audio
PCI Express / PCI support	5x PCIE3.0 (5 controllers, 5 x1, 1 x4 + 1 x1) Option: 6 Lanes if no LAN 4x PCIE3.0 on PEG Lanes 0-3 (1 controller, 1 x4 or 1 x2 or 1 x1)
USB	4x USB 3.0/2.0, + 4x USB 2.0
Serial	2x serial interface (RX/TX only)
Common Features	SPI, LPC, SMB, Fast I2C, Staged Watchdog, RTC
BIOS	AMI UEFI, vPRO optional
Humidity	93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78)
Power Management	ACPI 4.0, S5 Eco
Power Supply	8.5 V – 20 V Wide Range ATX, Single Supply Power
Special Features	Trusted Platfom Module TPM 2.0, Security Chip, POSCAP capacitors
Operating System	WES7, WES8, W7, W8, Linux, VxWorks
Temperature	0 °C to +60 °C operating -30 °C to +85 °C non-operating (na życzenie rozszerzony zakres temperatur: -25 °C to +75 °C operating -30 °C to +85 °C non-operating)

Numer katalogowy: 36021-0000-24-5

Producent: Newhaven

Status: Brak na stanie

2 772,36 zł / szt

3 410,00 zł brutto

Family	COMe-cSL6
Compliance	COM Express® compact, Pin-out Type 6
Dimensions (H x W x D)	95 x 95 mm
CPU	Intel® Core™i5-6300U, 2x 2.4GHz
Graphics Controller	Intel® HD Graphics 520
Chipset	Integrated SoC
Main Memory	DDR4 SO DIMM Socket
Panel signal	DDI1: DP++ DDI2: DP++ DDI3: - VGA: - LVDS: Dual Channel 18/24 bit
Ethernet	10/100/1000 MBit Ethernet
Ethernet Controller	Intel® I219LM
Flash Onboard	Na życzenie do 64 GByte SLC eMMC 5.0
Hard Disk	2x SATA 6Gb/s
Options	on request: 1x PCIe x1 additional w/o onboard LAN, eDP, max 64 GByte eMMC, instead of LVDS, vPRO (AMT/TXT/AES Support), industrial grade -40 °C to +85 °C
Audio	Intel® High Definition Audio
PCI Express / PCI support	5x PCIE3.0 (5 controllers, 5 x1, 1 x4 + 1 x1) Option: 6 Lanes if no LAN 4x PCIE3.0 on PEG Lanes 0-3 (1 controller, 1 x4 or 1 x2 or 1 x1)
USB	4x USB 3.0/2.0, + 4x USB 2.0
Serial	2x serial interface (RX/TX only)
Common Features	SPI, LPC, SMB, Fast I2C, Staged Watchdog, RTC
BIOS	AMI UEFI, vPRO optional
Humidity	93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78)
Power Management	ACPI 4.0, S5 Eco
Power Supply	8.5 V – 20 V Wide Range ATX, Single Supply Power
Special Features	Trusted Platfom Module TPM 2.0, Security Chip, POSCAP capacitors
Operating System	WES7, WES8, W7, W8, Linux, VxWorks
Temperature	0 °C to +60 °C operating -30 °C to +85 °C non-operating (na życzenie rozszerzony zakres temperatur: -25 °C to +75 °C operating -30 °C to +85 °C non-operating)

Producent	Newhaven
Manufacturer	Kontron
