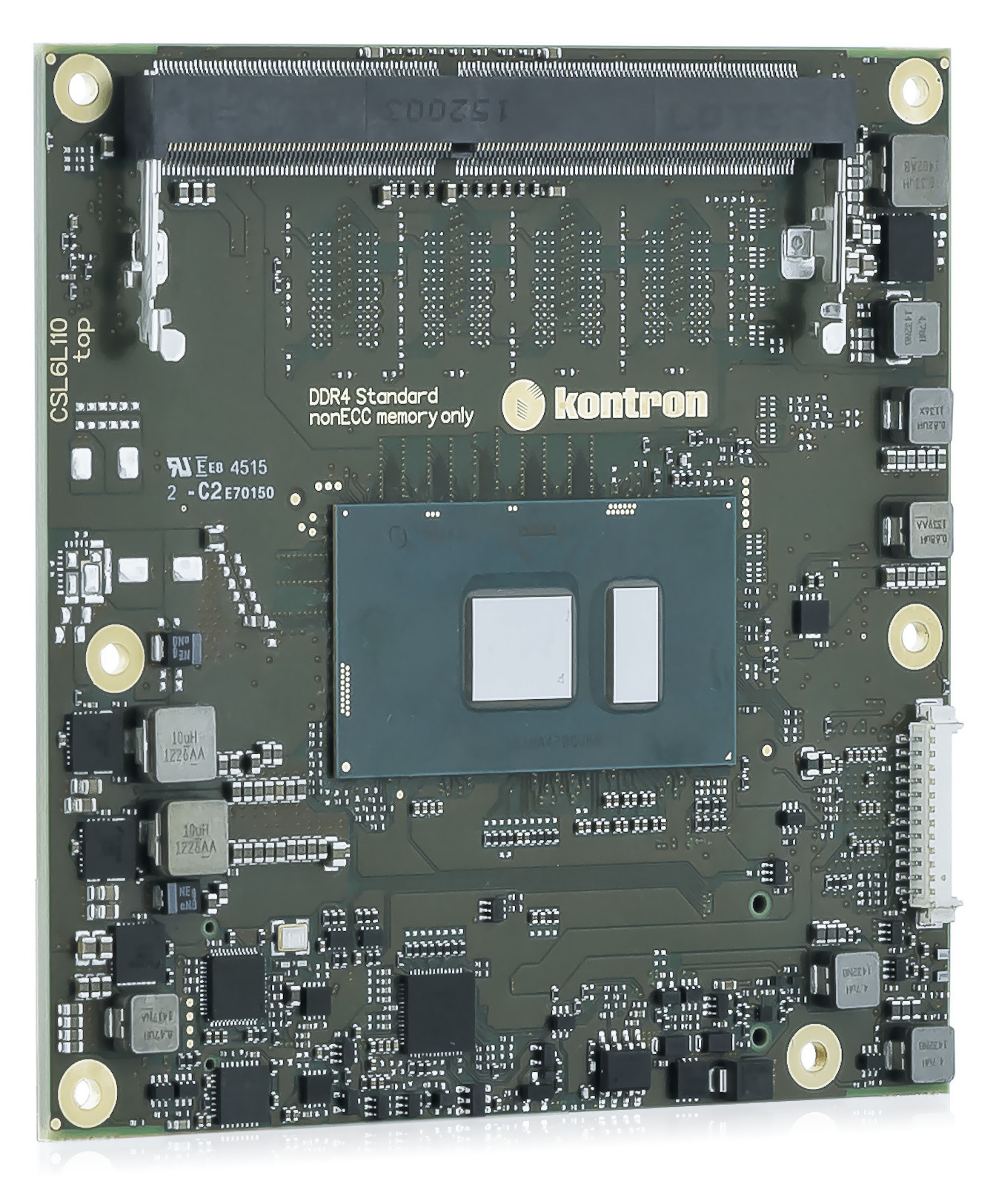

Komputer Modułowy Kontron Come-Ckl6 I7-7600U
- Manufacturer: Kontron
- Pełna specyfikacja
| Family | COMe-cKL6 |
| Compliance | COM Express® compact, Pin-out Type 6 |
| Dimensions (H x W x D) | 95 x 95 mm |
| CPU | Intel® Core™ i7-7600U, 2x 2.8GHz |
| Graphics Controller | Intel® HD Graphics 620 |
| Chipset | Integrated SoC |
| Main Memory | DDR4 SO DIMM Socket |
| Panel signal | DDI1: DP++ DDI2: DP++ DDI3: - VGA: - LVDS: Dual Channel 18/24 bit |
| Ethernet | 10/100/1000 MBit Ethernet |
| Ethernet Controller | Intel® I219LM |
| Flash Onboard | Na życzenie do 64 GByte SLC eMMC 5.0 |
| Hard Disk | 2x SATA 6Gb/s |
| Options | on request: 1x PCIe x1 additional w/o onboard LAN, eDP, max 64 GByte eMMC, instead of LVDS, vPRO (AMT/TXT/AES Support), industrial grade -40 °C to +85 °C |
| Audio | Intel® High Definition Audio |
| PCI Express / PCI support | 5x PCIE3.0 on PCIe lane 0-4 (3.0 only i5/ i7 SKUs) 5 controllers 4x PCIE3.0 on PEG Lanes 0-3 (3.0 only i5/ i7 SKUs) 1 Controller |
| USB | 4x USB 3.0/2.0, + 4x USB 2.0 |
| Serial | 2x serial interface (RX/TX only) |
| Common Features | SPI, LPC, SMB, Fast I2C, Staged Watchdog, RTC |
| BIOS | AMI AptioV UEFI |
| Humidity | 93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78) |
| Power Management | ACPI 4.0, S5 Eco |
| Power Supply | 8.5 V – 20 V Wide Range ATX, Single Supply Power |
| Special Features | Trusted Platfom Module TPM 2.0, Security Chip, POSCAP capacitors |
| Operating System | Windows®10 (64), Linux, VxWorks |
| Temperature | 0 °C to +60 °C operating -30 °C to +85 °C non-operating (na życzenie rozszerzony zakres temperatur: -25 °C to +75 °C operating -30 °C to +85 °C non-operating) |
Status: Brak na stanie
3 634,15 zł / szt
4 470,00 zł brutto
Zadaj pytanie
Komputer Modułowy Kontron Come-Ckl6 I7-7600U
Numer katalogowy: 36022-0000-28-7
Zapytaj o indywidualną cenę
Komputer Modułowy Kontron Come-Ckl6 I7-7600U
Numer katalogowy: 36022-0000-28-7
| Family | COMe-cKL6 |
| Compliance | COM Express® compact, Pin-out Type 6 |
| Dimensions (H x W x D) | 95 x 95 mm |
| CPU | Intel® Core™ i7-7600U, 2x 2.8GHz |
| Graphics Controller | Intel® HD Graphics 620 |
| Chipset | Integrated SoC |
| Main Memory | DDR4 SO DIMM Socket |
| Panel signal | DDI1: DP++ DDI2: DP++ DDI3: - VGA: - LVDS: Dual Channel 18/24 bit |
| Ethernet | 10/100/1000 MBit Ethernet |
| Ethernet Controller | Intel® I219LM |
| Flash Onboard | Na życzenie do 64 GByte SLC eMMC 5.0 |
| Hard Disk | 2x SATA 6Gb/s |
| Options | on request: 1x PCIe x1 additional w/o onboard LAN, eDP, max 64 GByte eMMC, instead of LVDS, vPRO (AMT/TXT/AES Support), industrial grade -40 °C to +85 °C |
| Audio | Intel® High Definition Audio |
| PCI Express / PCI support | 5x PCIE3.0 on PCIe lane 0-4 (3.0 only i5/ i7 SKUs) 5 controllers 4x PCIE3.0 on PEG Lanes 0-3 (3.0 only i5/ i7 SKUs) 1 Controller |
| USB | 4x USB 3.0/2.0, + 4x USB 2.0 |
| Serial | 2x serial interface (RX/TX only) |
| Common Features | SPI, LPC, SMB, Fast I2C, Staged Watchdog, RTC |
| BIOS | AMI AptioV UEFI |
| Humidity | 93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78) |
| Power Management | ACPI 4.0, S5 Eco |
| Power Supply | 8.5 V – 20 V Wide Range ATX, Single Supply Power |
| Special Features | Trusted Platfom Module TPM 2.0, Security Chip, POSCAP capacitors |
| Operating System | Windows®10 (64), Linux, VxWorks |
| Temperature | 0 °C to +60 °C operating -30 °C to +85 °C non-operating (na życzenie rozszerzony zakres temperatur: -25 °C to +75 °C operating -30 °C to +85 °C non-operating) |
