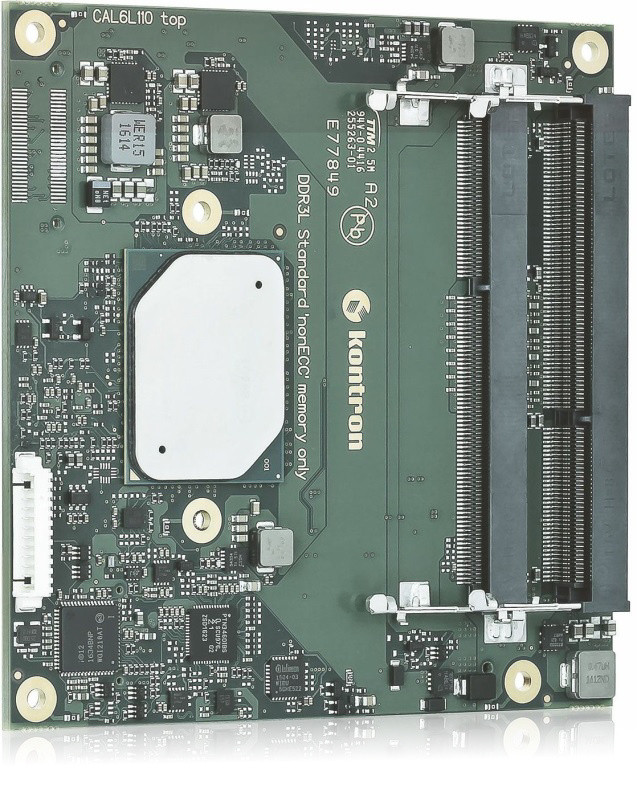

Komputer Modułowy Kontron Come-Cal6 N3350
- Manufacturer: Kontron
- Pełna specyfikacja
| Family | COMe-cAL6 |
| Compliance | COM Express® compact, Pin-out Type 6 |
| Dimensions (H x W x D) | 95 x 95 mm |
| CPU | Intel® Celeron® N3350, 2x 1.1 / 2.4 GHz |
| Graphics Controller | Intel HD Gfx Gen9: 1x LVDS/eDP (3840 x 2160 @ 60 Hz) 2x DP (++) on DDI1/DDI2 up to 4K |
| Chipset | Integrated SoC |
| Main Memory | Up to 8 GByte DDR3L 1600 / 1867 Memory (2x SODIMM socket) |
| Panel signal | DDI 1/2: DP++ LVDS: Dual Channel up to 48-bit or eDP on request |
| Ethernet | 10/100/1000 MBit Ethernet |
| Ethernet Controller | Intel® I210IT / I211AT |
| Flash Onboard | 32 GByte eMMC SLC on request: - up to 64 GByte eMMC SLC - up to 128 GByte eMMC MLC |
| Hard Disk | 2x SATA 6Gb/s, SDIO Interface (shared with GPIO) |
| Options | 5x PCIe x1 configuration w/ PCI hub eMMC Flash configuration Security Chip (Support of Kontron APPROTECT) eDP instead of LVDS General Purpose SPI instead of Boot SPI, AES-NI, USB client |
| Audio | Intel® High Definition Audio |
| PCI Express / PCI support | 3x PCIe x1 on request: - 5x PCIe x1: w/ LAN, w/ PCIe hub - 4x PCIe x1: w/o LAN, w/o PCIe hub |
| USB | 4x USB 3.0/2.0, 4x USB 2.0 - (3x USB 2.0 w/ Security Chip) |
| Serial | 2x serial interface (RX/TX only) |
| Common Features | SPI, LPC, SMB, Fast I2C, Staged Watchdog, RTC |
| BIOS | AMI Aptio V |
| Humidity | 93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78) |
| Power Management | ACPI 5.0 |
| Power Supply | 8.5 V – 20 V Wide Range, Single Supply Power |
| Special Features | POSCAP capacitors, Trusted Platform Module TPM 2.0, microSD card socket 4k Resolutions, GPIO/SDIO Switch |
| Operating System | Windows 10 Enterprise, Windows 10 IoT, Linux, VxWorks |
| Temperature | 0°C to +60°C operating -30°C to +85°C non-operating |
Status: Brak na stanie
691,06 zł / szt
850,00 zł brutto
Zadaj pytanie
Komputer Modułowy Kontron Come-Cal6 N3350
Numer katalogowy: 36023-0000-11-2
Zapytaj o indywidualną cenę
Komputer Modułowy Kontron Come-Cal6 N3350
Numer katalogowy: 36023-0000-11-2
| Family | COMe-cAL6 |
| Compliance | COM Express® compact, Pin-out Type 6 |
| Dimensions (H x W x D) | 95 x 95 mm |
| CPU | Intel® Celeron® N3350, 2x 1.1 / 2.4 GHz |
| Graphics Controller | Intel HD Gfx Gen9: 1x LVDS/eDP (3840 x 2160 @ 60 Hz) 2x DP (++) on DDI1/DDI2 up to 4K |
| Chipset | Integrated SoC |
| Main Memory | Up to 8 GByte DDR3L 1600 / 1867 Memory (2x SODIMM socket) |
| Panel signal | DDI 1/2: DP++ LVDS: Dual Channel up to 48-bit or eDP on request |
| Ethernet | 10/100/1000 MBit Ethernet |
| Ethernet Controller | Intel® I210IT / I211AT |
| Flash Onboard | 32 GByte eMMC SLC on request: - up to 64 GByte eMMC SLC - up to 128 GByte eMMC MLC |
| Hard Disk | 2x SATA 6Gb/s, SDIO Interface (shared with GPIO) |
| Options | 5x PCIe x1 configuration w/ PCI hub eMMC Flash configuration Security Chip (Support of Kontron APPROTECT) eDP instead of LVDS General Purpose SPI instead of Boot SPI, AES-NI, USB client |
| Audio | Intel® High Definition Audio |
| PCI Express / PCI support | 3x PCIe x1 on request: - 5x PCIe x1: w/ LAN, w/ PCIe hub - 4x PCIe x1: w/o LAN, w/o PCIe hub |
| USB | 4x USB 3.0/2.0, 4x USB 2.0 - (3x USB 2.0 w/ Security Chip) |
| Serial | 2x serial interface (RX/TX only) |
| Common Features | SPI, LPC, SMB, Fast I2C, Staged Watchdog, RTC |
| BIOS | AMI Aptio V |
| Humidity | 93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78) |
| Power Management | ACPI 5.0 |
| Power Supply | 8.5 V – 20 V Wide Range, Single Supply Power |
| Special Features | POSCAP capacitors, Trusted Platform Module TPM 2.0, microSD card socket 4k Resolutions, GPIO/SDIO Switch |
| Operating System | Windows 10 Enterprise, Windows 10 IoT, Linux, VxWorks |
| Temperature | 0°C to +60°C operating -30°C to +85°C non-operating |
Specyfikacja techniczna
| Producent | Newhaven |
|---|---|
| Manufacturer | Kontron |
