komputery przemysłowe

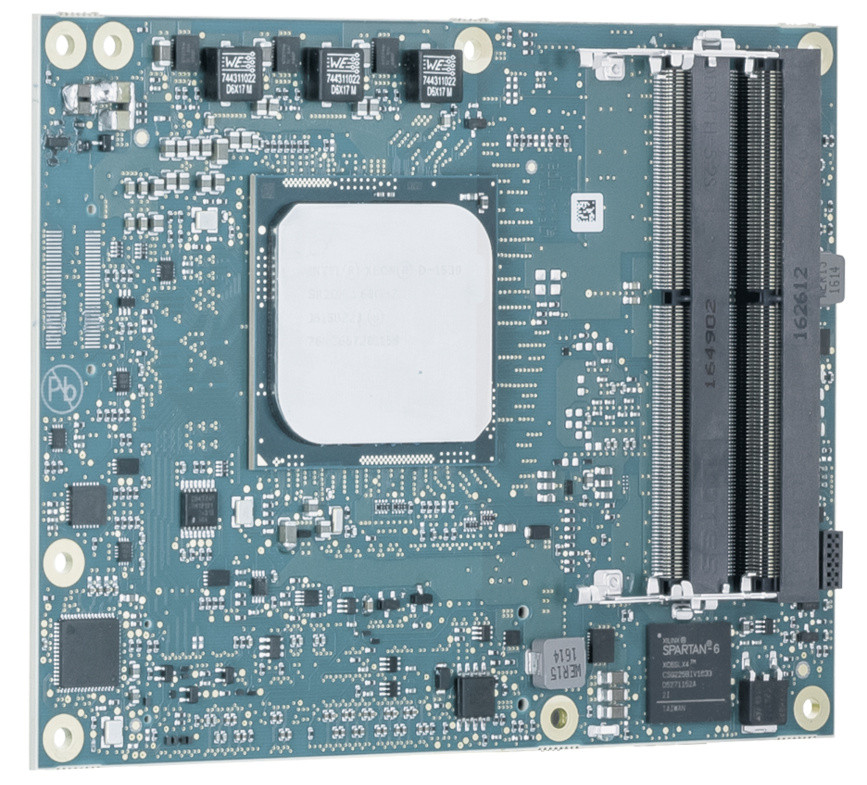

Komputer Kontron Come-Bbd7R E2 D-1559 10G-Base-Kr
- Manufacturer: Kontron
- Full specification
| Family | COMe-bBD7 |
| Compliance | COM Express® basic, Pin-out Type 7 |
| Dimensions (H x W x D) | 125 x 95 mm |
| CPU | Intel® Xeon® processor D-1559, 12x 1.5GHz |
| Chipset | Integrated in SoC |
| Main Memory | 2x DDR4 SODIMM dual channel up to 32 GByte ECC or non ECC |
| Ethernet | 10 Gbit Ethernet (KR) 10/100/1000 MBit Ethernet |
| Ethernet Controller | 2x 10 GbE: Integrated in SoC 1x GbE: Intel® I210IT |
| Hard Disk | 2x SATA3, 6Gb/s |
| Options | Up to 32 GByte onboard SATA flash |
| PCI Express / PCI support | 24x PCIe 3.0 (6 controllers, x16, x8, x4, x1 operation) 8x PCIe 2.0 (8 controllers, x8, x4, x1 configuration), one lane used by onboard 1 GbE LAN controller |
| USB | 4x USB 3.0/2.0 (1x USB used for onboard security chip) |
| Serial | 2x serial interface (RX/TX only) |
| Common Features | SPI, LPC, SMB, Fast I2C, Staged Watchdog, RTC |
| BIOS | AMI UEFI |
| Humidity | 93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78) |
| Power Management | ACPI 4.0 |
| Power Supply | ATX, 8.5 V – 20 V Wide Range, Single Supply Power |
| Special Features | Trusted Platfom Module TPM 2.0 Security Chip for Kontron security stack- APPROTECT |
| Operating System | Linux, Windows® Server 2012 / 2012 R2 / 2016, Windows® 7, Windows® 10, VxWorks 7.x |
| Temperature | -40 °C - +85 °C |
Status: Out of stock
6 934.96 zł / szt
8 530.00 zł gross
Ask a question
Komputer Kontron Come-Bbd7R E2 D-1559 10G-Base-Kr
SKU: 68005-0000-59-9
Ask For Individual Price
Komputer Kontron Come-Bbd7R E2 D-1559 10G-Base-Kr
SKU: 68005-0000-59-9
| Family | COMe-bBD7 |
| Compliance | COM Express® basic, Pin-out Type 7 |
| Dimensions (H x W x D) | 125 x 95 mm |
| CPU | Intel® Xeon® processor D-1559, 12x 1.5GHz |
| Chipset | Integrated in SoC |
| Main Memory | 2x DDR4 SODIMM dual channel up to 32 GByte ECC or non ECC |
| Ethernet | 10 Gbit Ethernet (KR) 10/100/1000 MBit Ethernet |
| Ethernet Controller | 2x 10 GbE: Integrated in SoC 1x GbE: Intel® I210IT |
| Hard Disk | 2x SATA3, 6Gb/s |
| Options | Up to 32 GByte onboard SATA flash |
| PCI Express / PCI support | 24x PCIe 3.0 (6 controllers, x16, x8, x4, x1 operation) 8x PCIe 2.0 (8 controllers, x8, x4, x1 configuration), one lane used by onboard 1 GbE LAN controller |
| USB | 4x USB 3.0/2.0 (1x USB used for onboard security chip) |
| Serial | 2x serial interface (RX/TX only) |
| Common Features | SPI, LPC, SMB, Fast I2C, Staged Watchdog, RTC |
| BIOS | AMI UEFI |
| Humidity | 93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78) |
| Power Management | ACPI 4.0 |
| Power Supply | ATX, 8.5 V – 20 V Wide Range, Single Supply Power |
| Special Features | Trusted Platfom Module TPM 2.0 Security Chip for Kontron security stack- APPROTECT |
| Operating System | Linux, Windows® Server 2012 / 2012 R2 / 2016, Windows® 7, Windows® 10, VxWorks 7.x |
| Temperature | -40 °C - +85 °C |
Technical Specifications
| Brand | Kontron |
|---|---|
| Manufacturer | Kontron |
