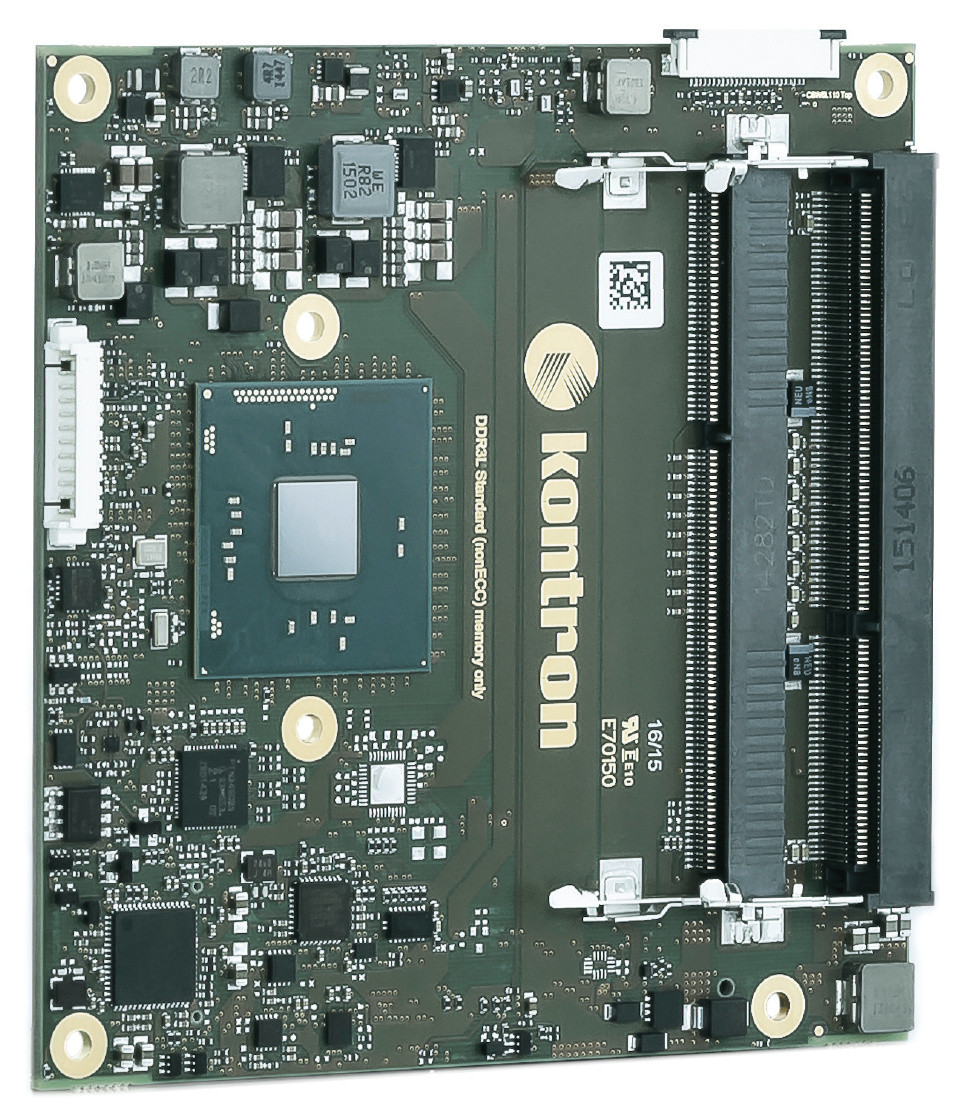

Komputer Modułowy Kontron Come-Cbw6 N3160
- Manufacturer: Kontron
- Full specification
| Family | COMe-cBW6 |
| Compliance | COM Express® compact, Pin-out Type 6 |
| Dimensions (H x W x D) | 95 x 95 mm |
| CPU | Intel® Celeron N3160, 4x 1.6GHz |
| Graphics Controller | Intel® HD® Graphics |
| Chipset | Integrated SoC |
| Main Memory | 2x SODIMM for DDR3L-1333/1600 (non ECC) up to 2x 4 GByte, 8 GByte total mSD-Socket |
| Panel signal | 3 independent Displays DDI1: DP++ DDI2: DP++ LVDS: Dual Channel 18/24bit VGA optional on DDI2 |
| Ethernet | 10/100/1000 MBit Ethernet |
| Ethernet Controller | Intel® I211AT |
| Flash Onboard | Up to 32 GByte SLC eMMC (option) |
| Hard Disk | 2x SATA3 6Gb/s |
| Options | 1x PCIe x1 additional w/o onboard LAN, onboard SSD (32 GByte eMMC), eDP instead of LVDS, VGA instead DDI2 |
| Audio | Intel® High Defi nition Audio |
| PCI Express / PCI support | 3x PCIE2.0 on PCIe lane 0-2 (3 controllers, 3 x1) Option: 4 Lanes if no LAN (4 controllers, 4 x1, 1 x4) |
| USB | 4x USB 3.0/2.0, + 4x USB 2.0 |
| Serial | 2x serial interface (RX/TX only) |
| Common Features | SPI, LPC, SMB, Fast I2C, Staged Watchdog, RTC, MARS |
| BIOS | AMI AptioV UEFI |
| Humidity | 93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78) |
| Power Management | ACPI 4.0, S5 Eco |
| Power Supply | 8.5 V – 20 V Wide Range ATX, Single Supply Power |
| Special Features | POSCAP capacitors, LVDS/DP Multiplexer, microSD card socket* |
| Operating System | Win7, Win8.1, WES8, Win 10 (all 64Bit), Linux |
| Temperature | 0°C to +60°C operating -30°C to +85°C non-operating |
Status: Out of stock
869.92 zł / szt
1 070.00 zł gross
Ask a question
Komputer Modułowy Kontron Come-Cbw6 N3160
SKU: 36020-0000-17-4
Ask For Individual Price
Komputer Modułowy Kontron Come-Cbw6 N3160
SKU: 36020-0000-17-4
| Family | COMe-cBW6 |
| Compliance | COM Express® compact, Pin-out Type 6 |
| Dimensions (H x W x D) | 95 x 95 mm |
| CPU | Intel® Celeron N3160, 4x 1.6GHz |
| Graphics Controller | Intel® HD® Graphics |
| Chipset | Integrated SoC |
| Main Memory | 2x SODIMM for DDR3L-1333/1600 (non ECC) up to 2x 4 GByte, 8 GByte total mSD-Socket |
| Panel signal | 3 independent Displays DDI1: DP++ DDI2: DP++ LVDS: Dual Channel 18/24bit VGA optional on DDI2 |
| Ethernet | 10/100/1000 MBit Ethernet |
| Ethernet Controller | Intel® I211AT |
| Flash Onboard | Up to 32 GByte SLC eMMC (option) |
| Hard Disk | 2x SATA3 6Gb/s |
| Options | 1x PCIe x1 additional w/o onboard LAN, onboard SSD (32 GByte eMMC), eDP instead of LVDS, VGA instead DDI2 |
| Audio | Intel® High Defi nition Audio |
| PCI Express / PCI support | 3x PCIE2.0 on PCIe lane 0-2 (3 controllers, 3 x1) Option: 4 Lanes if no LAN (4 controllers, 4 x1, 1 x4) |
| USB | 4x USB 3.0/2.0, + 4x USB 2.0 |
| Serial | 2x serial interface (RX/TX only) |
| Common Features | SPI, LPC, SMB, Fast I2C, Staged Watchdog, RTC, MARS |
| BIOS | AMI AptioV UEFI |
| Humidity | 93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78) |
| Power Management | ACPI 4.0, S5 Eco |
| Power Supply | 8.5 V – 20 V Wide Range ATX, Single Supply Power |
| Special Features | POSCAP capacitors, LVDS/DP Multiplexer, microSD card socket* |
| Operating System | Win7, Win8.1, WES8, Win 10 (all 64Bit), Linux |
| Temperature | 0°C to +60°C operating -30°C to +85°C non-operating |
