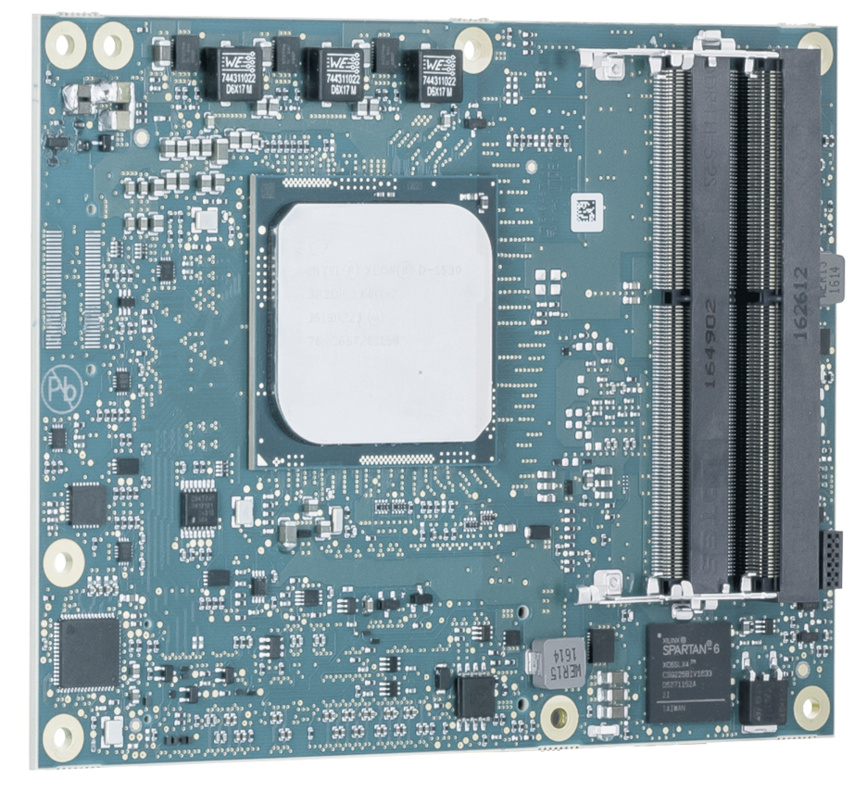

Komputer Kontron COMe-bBD7 D-1508 10G-BASE-KR
Komputery przemysłowe

Komputer Kontron COMe-bBD7 D-1508 10G-BASE-KR

(2 customer reviews)
Kontron
  • Chłodzenie: pasywne
  • Procesor: Intel Pentium D1508
  • RAM: do 32 GB DDR4
  • Full specification
SKU: 68004-0000-08-2
Status: Out of stock
1 780.49 zł / szt
2 190.00 zł gross
Wishlist
Compare
FamilyCOMe-bBD7
ComplianceCOM Express® basic, Pin-out Type 7
Dimensions (H x W x D)125 x 95 mm
CPUIntel® Pentium® processor D1508, 2x 2.2GHz
ChipsetIntegrated in SoC
Main Memory2x DDR4 SODIMM dual channel up to 32 GByte ECC or non ECC
Ethernet10 Gbit Ethernet (KR)
10/100/1000 MBit Ethernet
Ethernet Controller2x 10 GbE: Integrated in SoC 1x GbE: Intel® I210IT
Hard Disk2x SATA3, 6Gb/s
OptionsUp to 32 GByte onboard SATA flash
PCI Express / PCI support24x PCIe 3.0 (6 controllers, x16, x8, x4, x1 operation)
8x PCIe 2.0 (8 controllers, x8, x4, x1 configuration),
one lane used by onboard 1 GbE LAN controller
USB4x USB 3.0/2.0 (1x USB used for onboard security chip)
Serial2x serial interface (RX/TX only)
Common FeaturesSPI, LPC, SMB, Fast I2C, Staged Watchdog, RTC
BIOSAMI UEFI
Humidity93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78)
Power ManagementACPI 4.0
Power SupplyATX, 8.5 V – 20 V Wide Range, Single Supply Power
Special FeaturesTrusted Platfom Module TPM 2.0
Security Chip for Kontron security stack- APPROTECT
Operating SystemLinux, Windows® Server 2012 / 2012 R2 / 2016, Windows® 7, Windows® 10, VxWorks 7.x
Temperature0 - 60 °C

Technical Specifications

Brand Kontron
Chłodzenie pasywne
Procesor Intel Pentium D1508
RAM do 32 GB DDR4
Standard COM Express Type 7
Temperatura 0°C do 60°C
Zasilanie 8,5V-20V DC
